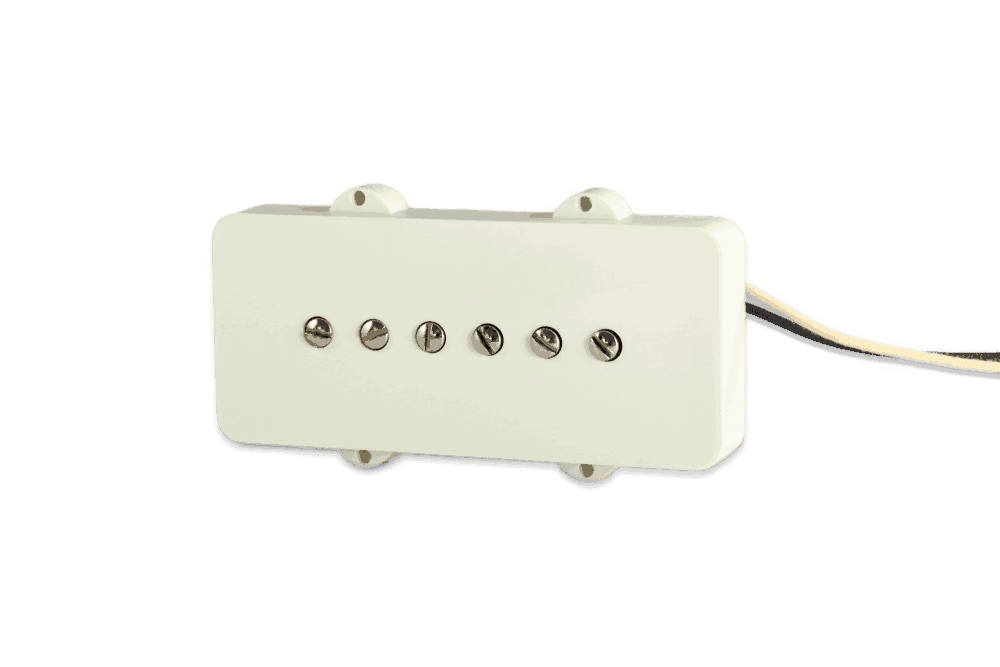

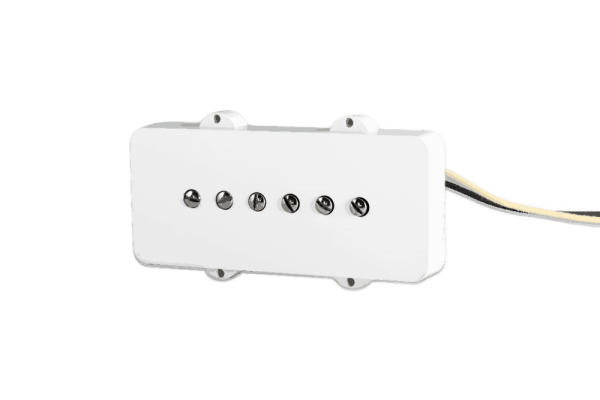

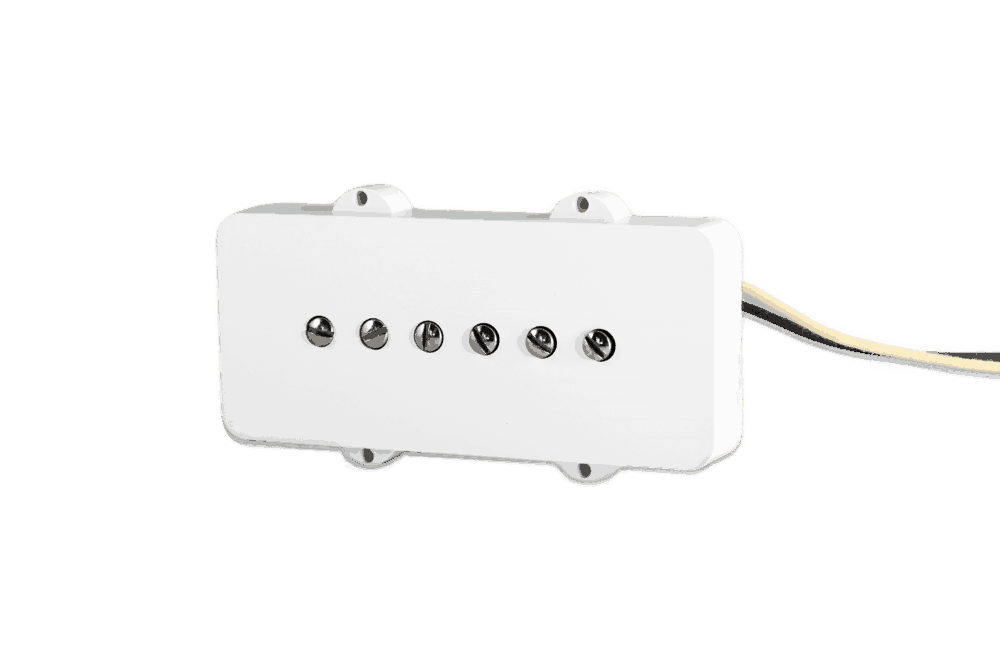

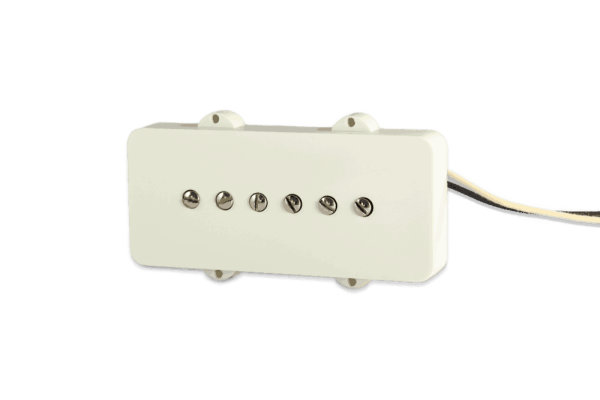

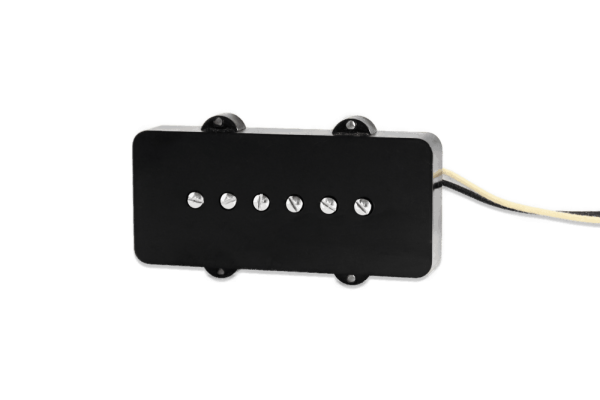

Hum-Cancelling Steel-Pole Jazzmaster
P90 Tone, Jazzmaster Looks, No Hum
$175 – $350
The Fralin Hum-Cancelling Steel Poled Jazzmaster gives you a Hum-Cancelling P-90 tone for your Jazzmaster. Similar to our Steel-Pole Jazzmaster Pickup: a thick P90 sound in a Jazzmaster cover, with no hum. Thick, beefy, and harmonically rich.
Quick Links
Jump to Sound Clips and more Info:
P90 Tone, Zero Hum.
Want to learn more about our Hum-Cancelling Steel-Pole Jazzmaster? Here's all the information you'll need:
Features
Are you searching for P90 tone for your Jazzmaster, but hate hum? This pickup will provide you with the results you’re searching for. Lindy’s Hum-Cancelling Steel Pole Jazzmaster pickups are the perfect fit for those looking to beef up their Jazzmaster. We build these pickups to the same specifications as our Fralin Steel Pole Jazzmaster Pickups, but with a unique and innovative 2-coil design for hum cancellation in all positions.
The Hum-Cancelling Jazzmaster leans more towards the tone of a P-90 than a single-coil (exactly like our Hum Cancelling P90), but with added thickness. Using 43 Gauge wire, we squeeze as much output as we can out of this set while maintaining clarity and attack.
Features:
- Strong and bold – lots of midrange and snarl
- USA-Made Bonded Neodymium magnets for an aggressive attack
- Compensated Bridge output for even volume across all pickups
- Multiple winding options to provide you with your ideal tone
- Dead-quiet and hum-free performance
- Adjustable Steel Pole pieces for fine-tuning string balance
- Hand-wound with our “Sectioning” technique for unique, dynamic tone
- Hand-built for unrivaled quality control, and inspected three times during the manufacturing process
- 10-Year Warranty on manufacturing defects
Sound
When playing clean, these pickups sound thick and powerful, especially in the midrange and top-end. Closer to the sound of a P90, our Hum-Cancelling Steel Pole Jazzmaster Pickups will provide you with an aggressive, thick tone that is perfect for balancing out a bright-sounding guitar or for those looking for more growl in their sound. Do you like distortion? You’ll undoubtedly get some push out of this set. Hum-Cancelling Steel Pole Jazzmasters provide you with that famous P90 “chainsaw” grind instead of a smoother AlNiCo distortion.
We also feature multiple winding options: a 5% underwind, or 5% overwind option. Underwinding a pickup cleans up the midrange and emphasizes the highs – think “clearer and cleaner”, while overwinding thickens and darkens the pickup’s tone. Our Stock Set is the perfect and ideal balance, to our ears.
It all starts here: our manufacturing process allows us to achieve unparalleled quality control. Hum-Cancelling Steel Pole Jazzmaster pickups consist of a precision injection mold and USA-Made Steel Screws. We use aggressive USA-Made Neodymium magnets to make this model scream, with a pronounced pick attack. Each bobbin is carefully inspected and cleaned before winding.
We wind each pickup by hand, one at a time, and wind each pickup using our proprietary “Sectioning” technique. This gives the pickup a sweet, clear tone. Finally, we wax-pot the pickup to preserve the pickup and prevent microphonics.
Tonal Graph For Hum-Cancelling Steel-Pole Jazzmaster:
The tonal graph below for our Hum-Cancelling Steel-Pole Jazzmaster features Lows, Midrange, Highs, and general Output.
Attack: Stiff & Percussive
Videos for Hum-Cancelling Steel-Pole Jazzmaster:
Tech Specs:
See below for the estimated DCR and Polarity Information for our Hum-Cancelling Steel-Pole Jazzmaster.
You might need to rout out a bit of wood to make these pickups fit. Some customers were required to rout about 1/16" - 1/8" from their pickup cavities. On American Vintage Reissue Guitars (AVRI), you'll need to lift the Copper Plate, rout some of the wood (1/8" - 1/4"), and replace the copper plate.
| SPECIFICATION | VALUE |
|---|---|
| Neck Ohm Reading: | 16K* 1 |
| Bridge Ohm Reading: | 17.2K* 1 |
| Neck Polarity: | Hum Cancelling - Use 2-Conductor With Shield if buying a Single |
| Bridge Polarity: | Hum Cancelling - Use 2-Conductor With Shield if buying a Single |
| Magnets: | Bonded Neodymium |
| Wire: | USA-Made 43-Gauge Single Poly Nylon |
| Recommended Pot Value: | 500K |
| String Spacing: | 52mm |
| Recommended Cap Value: | 0.02mfd 2 |
Additional Technical Info:
1 Ohm Readings can vary due to a multitude of factors, including ambient temperature, multimeter calibration, different wire batches, and other factors. Due to this, ohm readings are approximate. Learn more about Ohm Readings here.
2 We recommend a 0.02mfd Cap Value on most guitar and bass pickups. The exception is a Magic Cap, which Lindy prefers on the Bridge Pickup of Fender® guitars only. Learn More about Caps Here.
Due to the unique design of this pickup, ohm readings are not very useful. Compare our stock output to the output of a P90.
Polarity Information:
Here's how we wind and magnetize our pickups:
If you're buying a set from us, all pickups will work together seamlessly. If you're buying a single pickup, all you need to worry about is Coil Direction.
To ensure your pickup will work, make sure you select multiple leads (2-Conductor, 3-Conductor, or 4-Conductor if available), or the 3-Wire modification so you can reverse the coil direction, if need be.
Hum-Cancelling Steel-Pole Jazzmaster Dimensions:
Customer Reviews
17 Genuine Reviews for Hum-Cancelling Steel-Pole Jazzmaster
-
FANTASTIC pickups! Beautiful percussive attack.
-
I’ve primarily been a Strat, Tele, Paul guy, so P90s weren’t in my wheelhouse. I played an SG junior that a friend of mine had, and I loved the Townshend vibe. I can’t stand single coil hum, so the idea of only being able to play with both pickups on didn’t appeal to me. I put Fralin’s P90 voiced Jazzmasters in a Squier Paranormal Tele. These are great! That vintage vibe is there, and they’re dead quiet. I like them so much, I upgraded the neck on the guitar, along with the bridge. This guitar is in my regular rotation now. Well done!!
-
These things are amazing! Pushes ANYTHING into overdrive without so much as a peep of noise. Fat P90 tone and dead silent, I love them. One thing to note: I do find getting the right tone a bit finicky when plugging in DI but that’s normally the nature of DI playing. But where it matters in the amps they KICK and sound so good that the finicky EQ on DI can be completely ignored.
-
I am thoroughly blown away by these pickups! These are even quieter than my hum-bucking guitars. As someone with absolutely no knowledge on inner wiring and electronics of a guitar, I found installing these relatively simple. I used Lindy’s Jazzmaster PDF wiring diagram, a newly purchased Weller soldering kit and a few of the tips and tricks PDFs I was emailed and knocked this out by myself with no issues. The wiring was a bit different than what came stock in the Jazzmaster, so that took a little figuring out, but once it made since, it was smooth sailing. The tone, silence and sustain of these pickups are giving my Jazzmaster new life and is now my go-to guitar. I use lots of overdrive and high gain and these are still dead silent. Great work, Lindy!
-
Amazing pickups. No hum or annoying noise, but perfectly clear and bright. They sound fantastic in my Jazzmaster
-
Very happy with these pickups! Great for clean tones and can go to the highest levels of fuzz without losing the mid range.
-
Customer added no additional comments
-
Another Great set!
Replaced the stock pickups in the classic vibe and it took the guitar to a whole other level! Crisp articulate smooth vibe and gets that grit when called upon
-
Wonderful tones! Smooth, warm, round, and crisp – and dead quiet!
-
Good replacement for classic player jm pickups
-
Badass! Thanks Fralin. This Jazzmaster is now the guitar I wanted it to be.
-
I got a set for my MJT Jazzmaster with CP guts – The tone of the pickups has transformed this guitar – the layers of complexity of the neck pickup alone is outstanding – I’m doing a lot of ambient ‘soundscape’ stuff…These are silent!
-
Holy Lord of Tone
Completely transformed my Squire Baritone into one of my favorite guitars. 5% overwind in the bridge – Doom city! Thanks to the team for awesome communication too
-
Fralins are still the best! The best pickups, the best service, and support!
-
Awesome!
These Hum-Cancelling Steel-Poled Jazzmaster pickups are great. I purchased the 5% underwind. My Jazzmaster still sounds like a Jazzmaster but with the high-end tamed, more mids and a much fuller overall sound. I can’t say enough good things about them. Good people do deal with also.
-
Exceeded my Expectations
I got a pair for a custom Jazzmaster build. The neck was stock and the neck 5. Because the pickups have more height than standard Fender pickups, I did have to do a little bit of routing of the pickup cavities – about 1/8″ for the neck, 1/16″ for the bridge. (The Fralin folks do mention that this mod may be necessary on the product spec page… it’s not difficult. I used a B&D RTX with a router bit on a StewMac Precision Router base and just did it in a few passes). The pickups sound fantastic! Clear with a nice full tone but distinct highs. I am very happy with the purchase. -
I recently purchased these pickups for my jazzmaster, i can’t say enough good things about them, they sound great, very dynamic and super quiet when stacking gain pedals, especially fuzz pedals. I totally recommend these pickups.
