Telecaster with Bright Switch

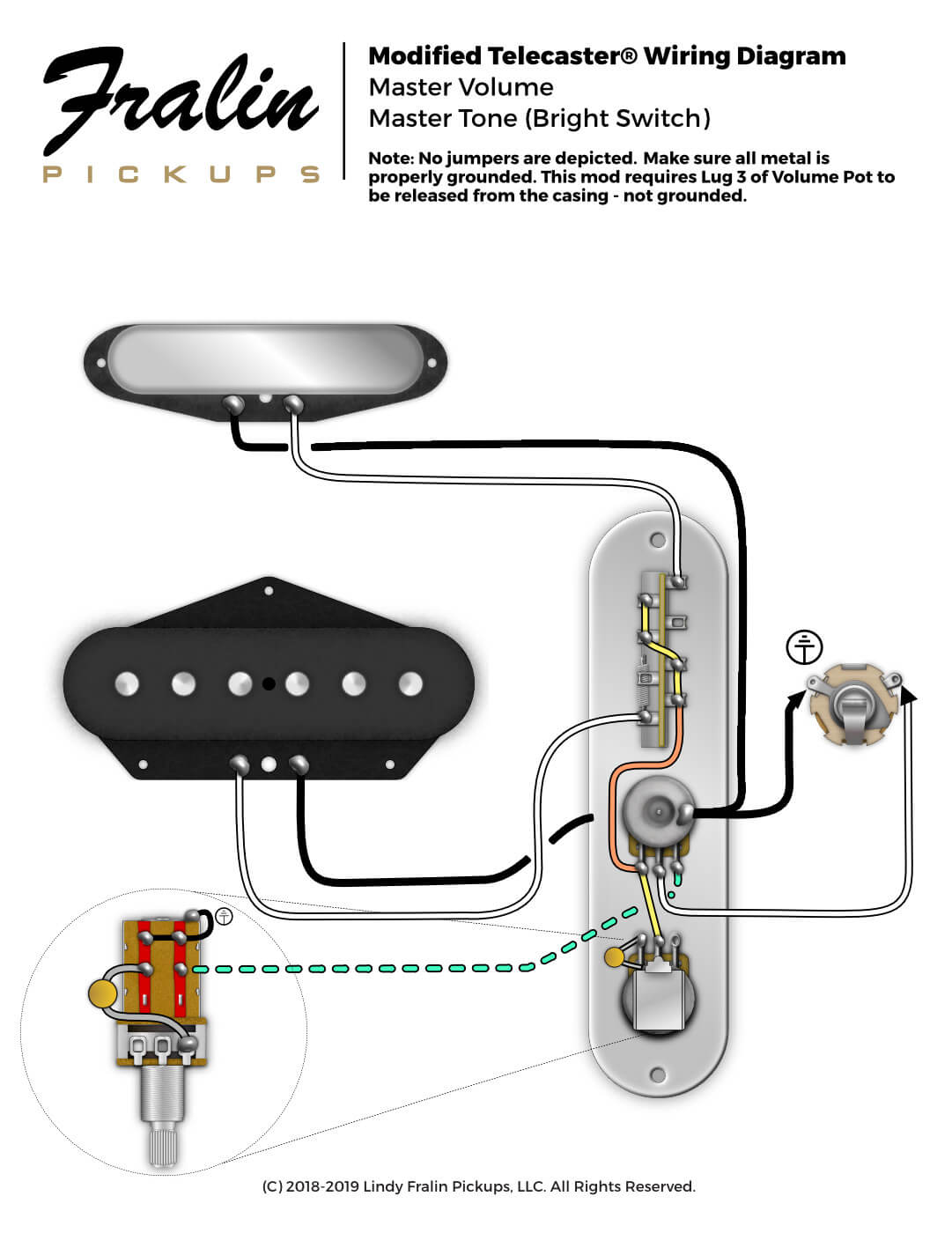

Telecaster Wiring Diagram with Bright Switch

Notes on this Telecaster with Bright Switch Diagram:

More information regarding this wiring diagram:

The Bright Switch adds a touch of brightness and clarity to your guitar when you pull up. More information on the Bright Switch is here: The Bright Switch

Download

Download this wiring diagram and save it to your computer.

Download This PDF

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
