Telecaster Wiring Diagram – Flipped Control Plate

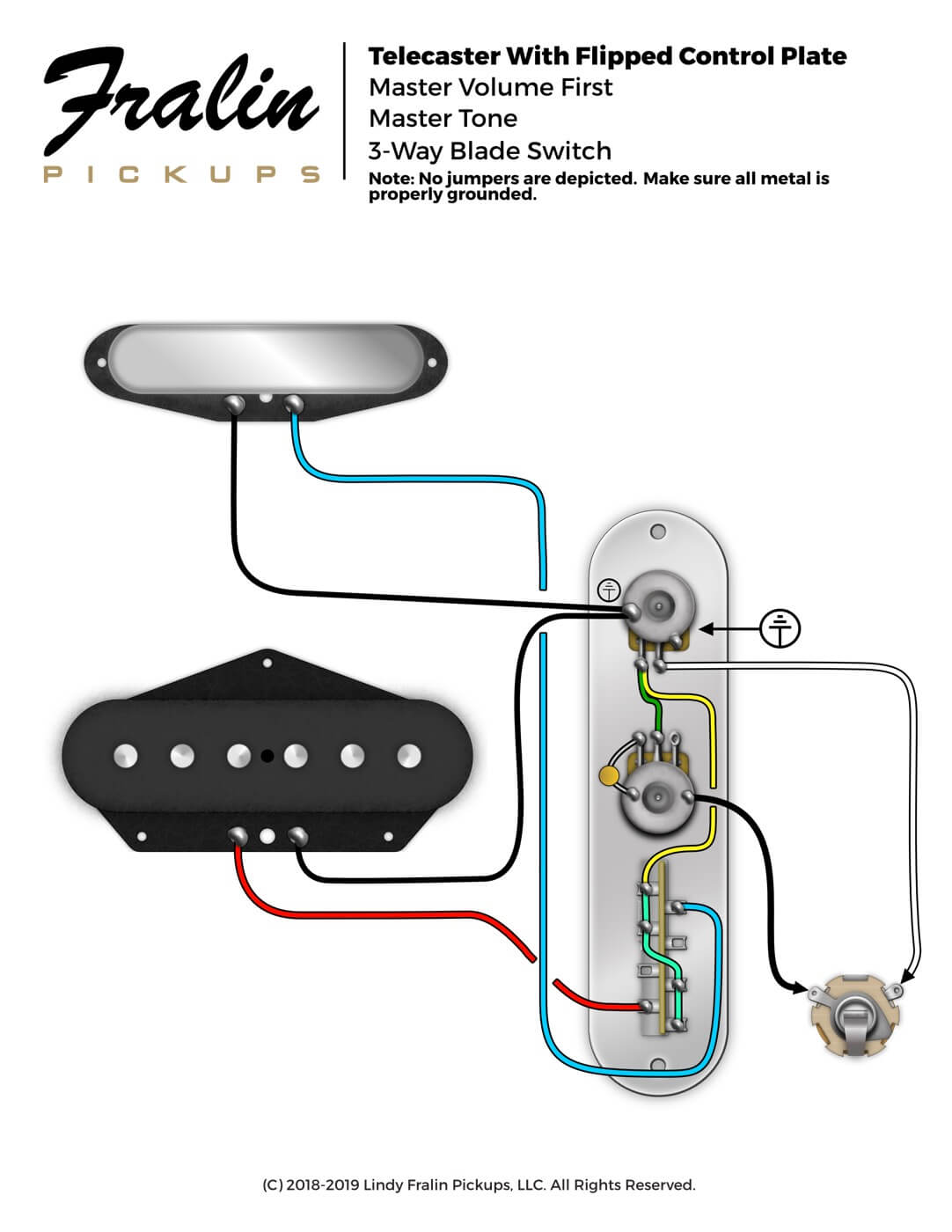

Telecaster Wiring Diagram featuring a Flipped Control Plate

Fralin Tele Flipped Wiring Diagram

Notes on this Telecaster Wiring Diagram – Flipped Control Plate:

More information regarding this wiring diagram:

This is our Standard Telecaster Wiring diagram, but with a Flipped Control Plate. If you’re not sure what a Flipped Control Plate is, we reverse the control plate so the Volume Pot is first, Tone second, and the Blade Switch is last. It’s really useful if you like to play with Volume Swells. More information here: Flipped Control Plate For Telecaster®

Download

Download this wiring diagram and save it to your computer.

Download This PDF
Note:

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
