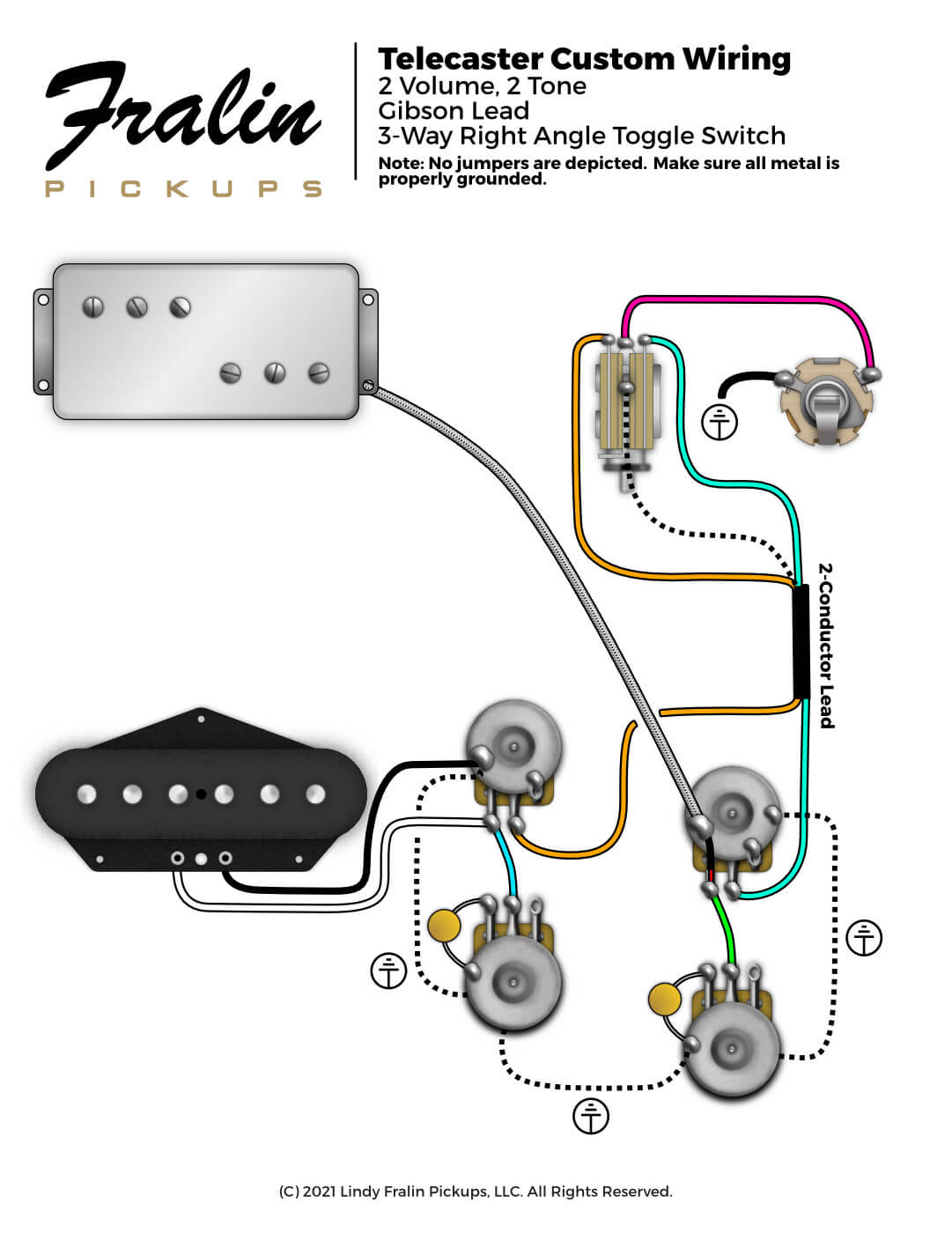

Telecaster Custom Wiring Diagram

The Telecaster Custom combines the best of both worlds – the Telecaster form and function, and Les Paul-style wiring. This allows you to achieve an incredible array of tones while keeping all electronics optimized for the pickups you select.

• Position 1: Bridge
• Position 2: Bridge + Neck (Parallel)
• Position 3: Neck

What’s great about the Telecaster Custom is that you can select a 250K pot for the Bridge, and a 500K pot for the Wide Range Humbucker Neck.
