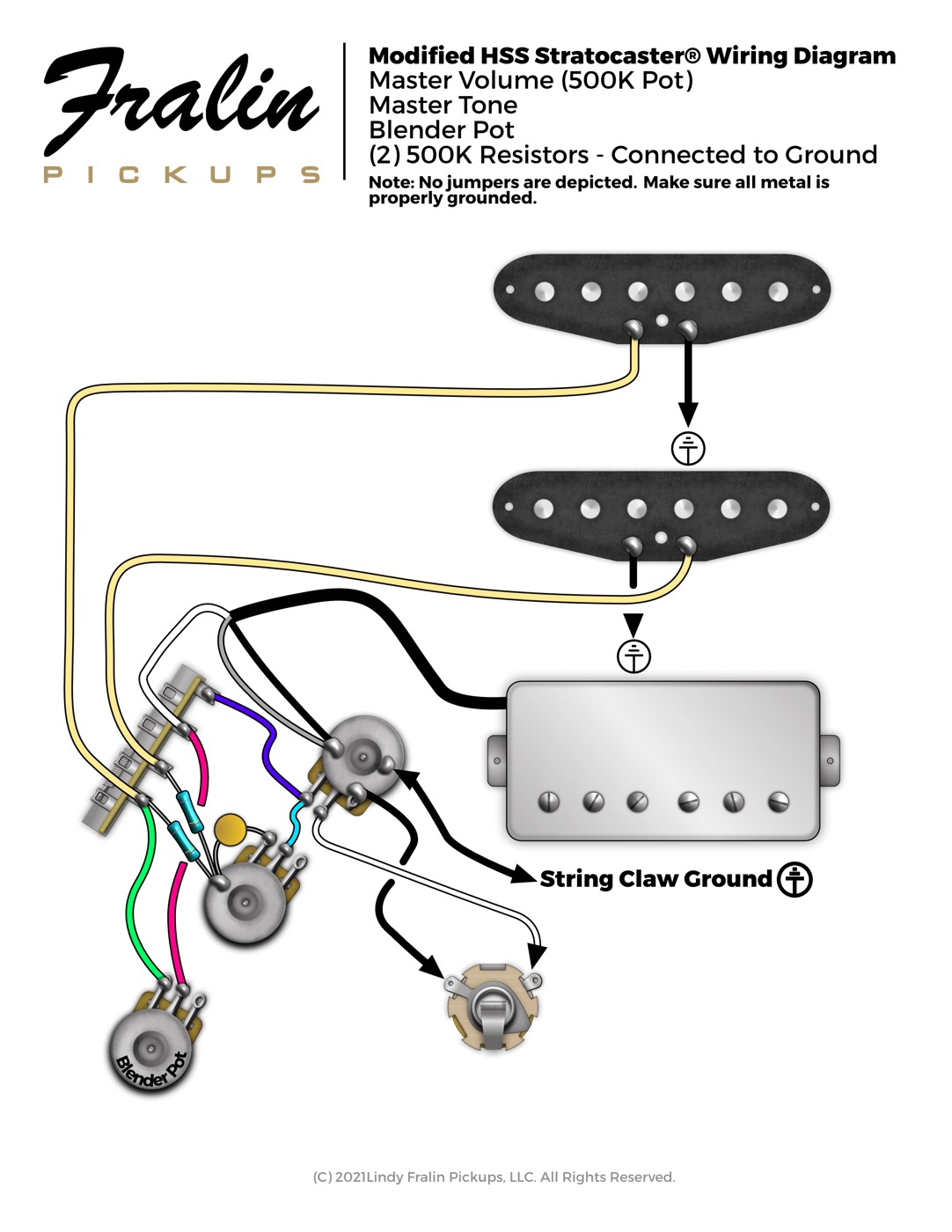

Modified HSS Stratocaster Wiring Diagram

HSS Stratocaster Wiring Diagram featuring two 500K Resistors for a balanced tone.

Notes on this Modified HSS Stratocaster Wiring Diagram:

More information regarding this wiring diagram:

This wiring diagram for HSS Strat features two 500K resistors to make everything balance tonally. You would use this diagram if you wanted to use a single 500K pot and make all pickups sound great.

If you want to learn more about this diagram, check out our article here: How To Mix Single Coils and Humbuckers

Download this wiring diagram and save it to your computer.

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
