Half Blender Pot Wiring Diagram

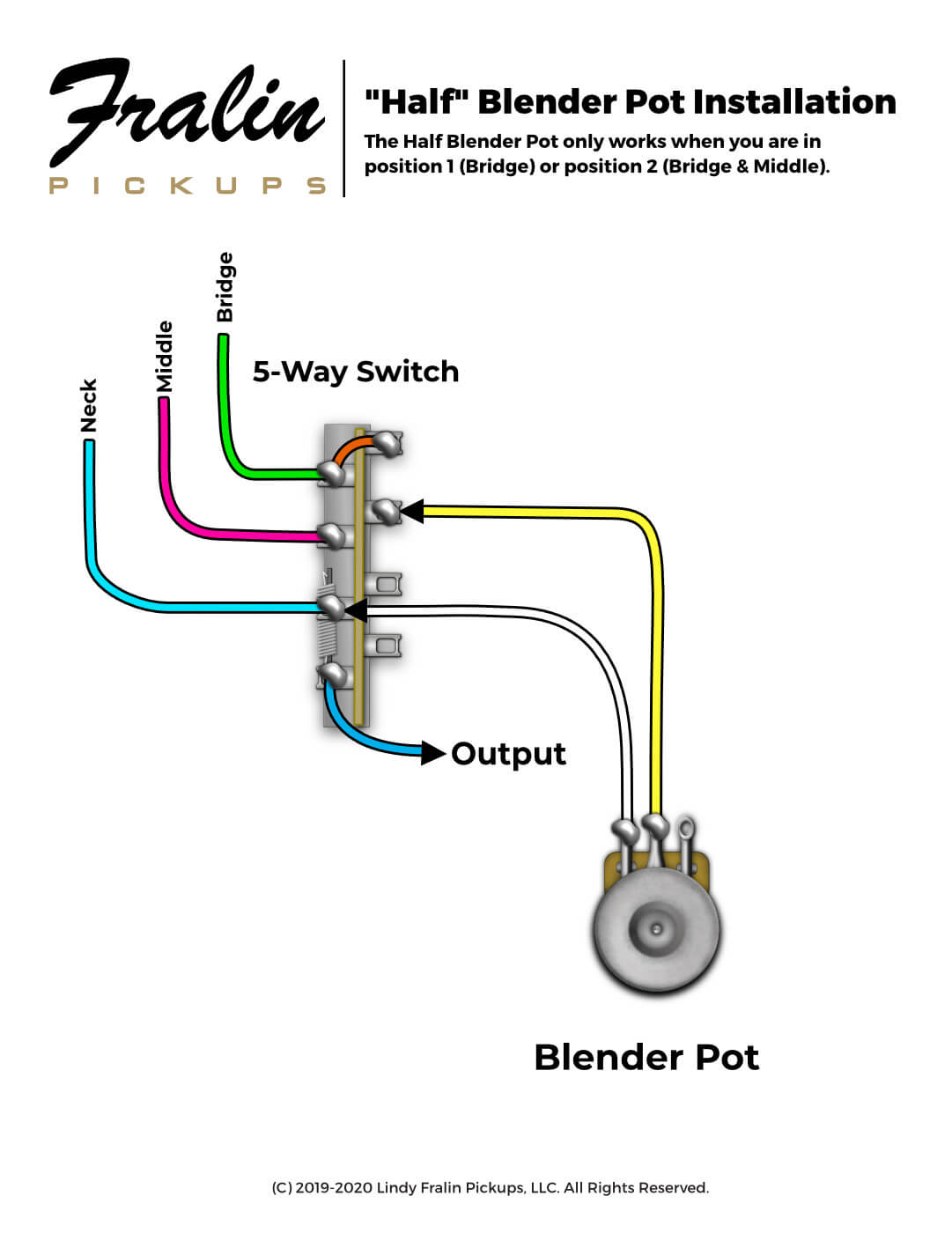

The Half Blender Pot involves our standard Blender Pot but only activates it in positions 1 and 2 (Bridge, Bridge & Middle).

Notes on this Half Blender Pot Wiring Diagram:

More information regarding this wiring diagram:

Download this wiring diagram and save it to your computer.

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
