Gibson Les Paul Wiring (50’s Wiring)

Gibson Wiring Diagram with '50s Wiring

Gibson Les Paul Wiring Diagram with 50's Wiring

Notes on this Gibson Les Paul Wiring (50’s Wiring) Diagram:

More information regarding this wiring diagram:

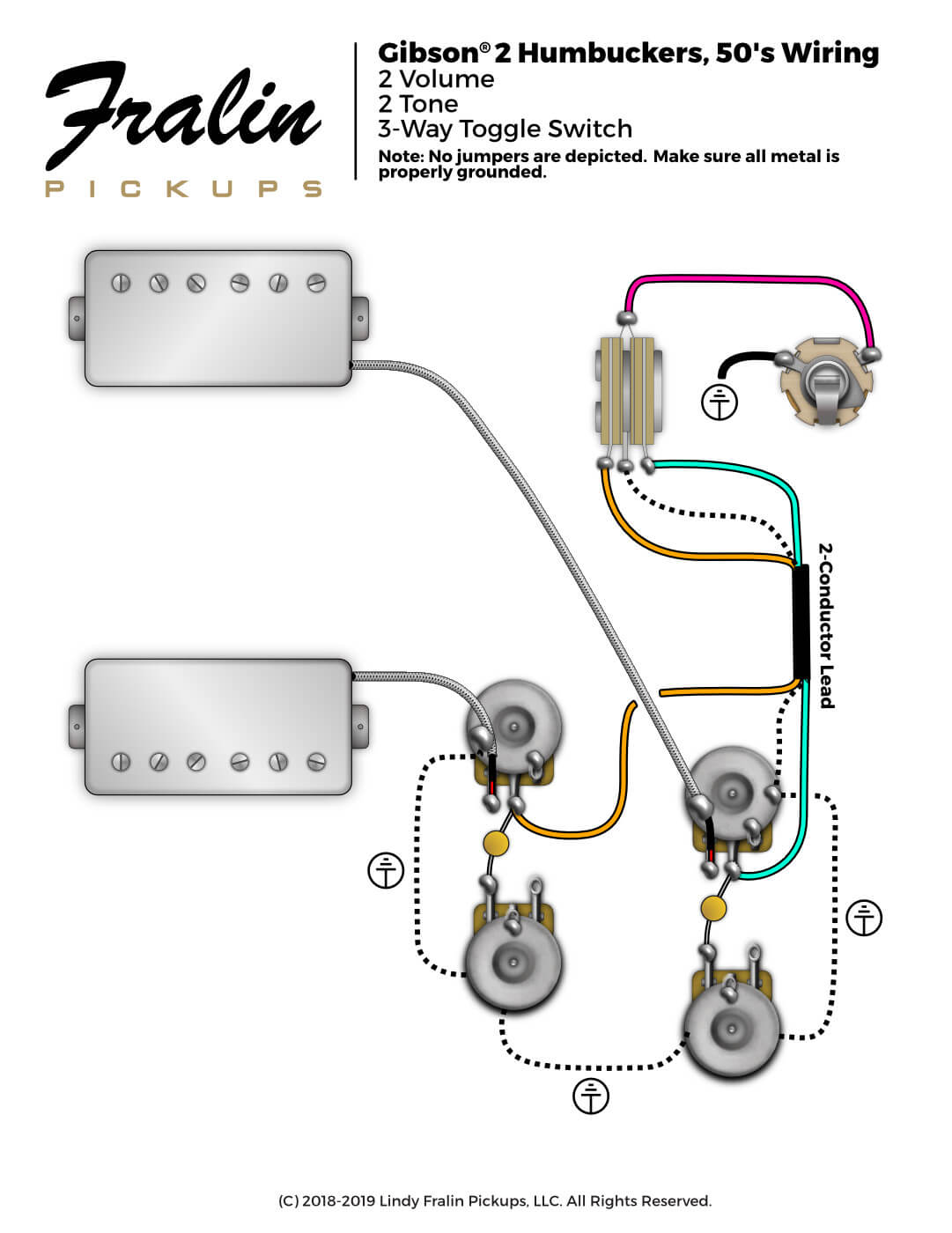

This Les Paul wiring diagram features Fralin Humbuckers with 50’s wiring. 50’s wiring changes the way we wire up the tone pot, giving you a brighter, clearer tone.

Download

Download this wiring diagram and save it to your computer.

Download This PDF

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
