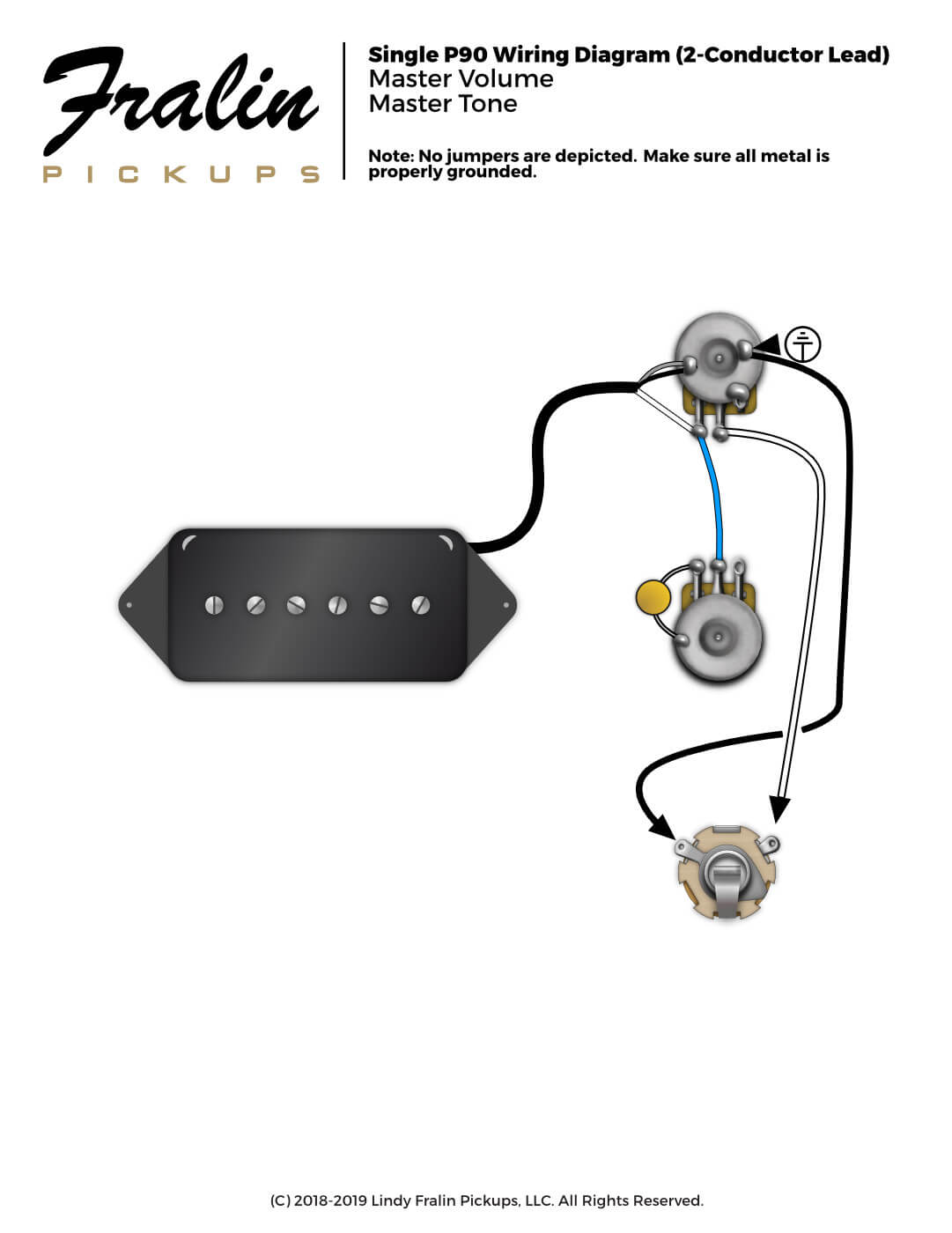

Gibson Les Paul Jr. Wiring Diagram (2-Conductor)

Gibson Les Paul Jr. Wiring Diagram with 2-Conductor Lead, if you purchased a single pickup with a reversible lead.

Notes on this Gibson Les Paul Jr. Wiring Diagram (2-Conductor):

More information regarding this wiring diagram:

Download this wiring diagram and save it to your computer.

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
