Coil Split Two Humbuckers At Once

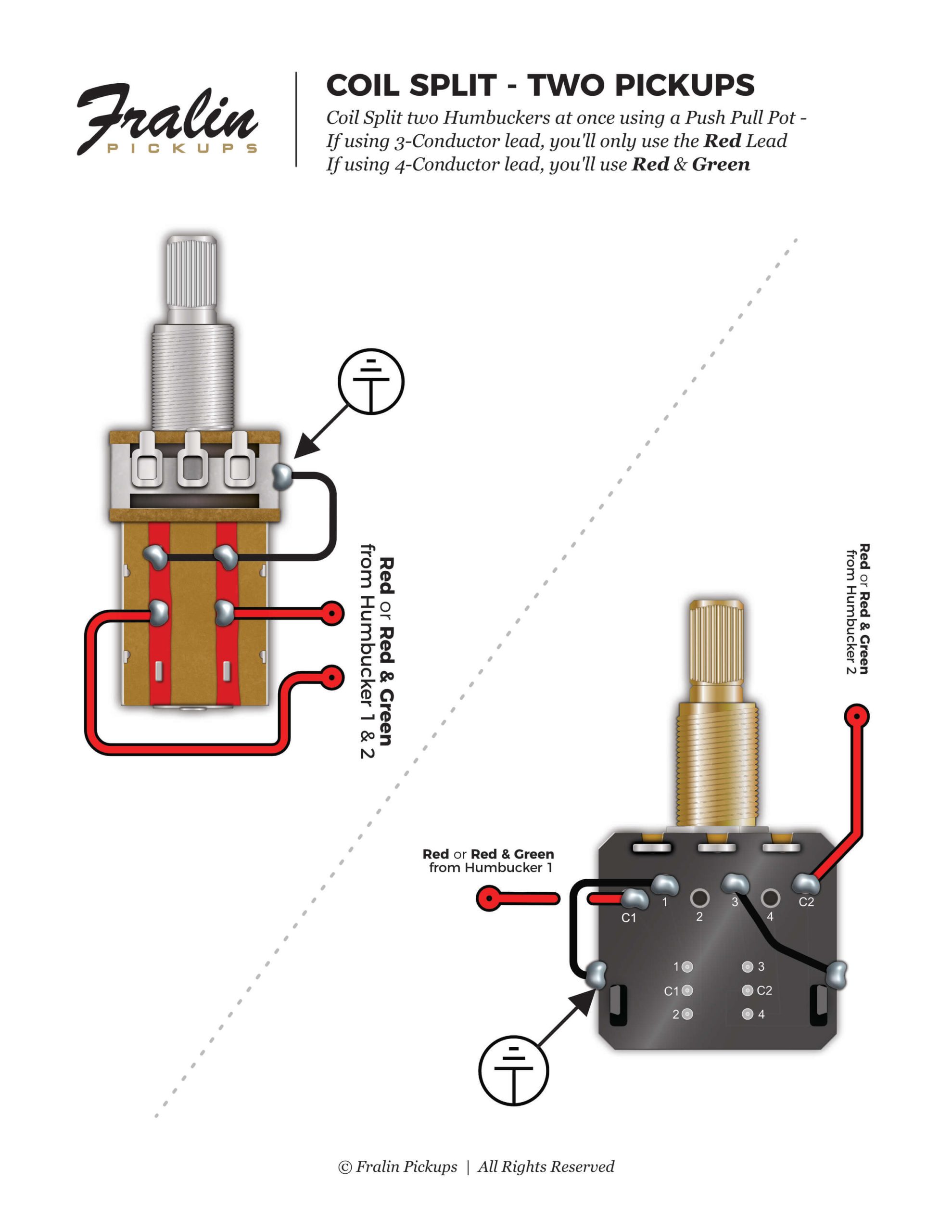

This wiring diagram features how to split two humbuckers at once with a single push-pull pot.

Notes on this Coil Split Two Humbuckers At Once Diagram:

More information regarding this wiring diagram:

Download

Download this wiring diagram and save it to your computer.

Download This PDF

If you ordered a Prewired Pickguard or Control Plate from us, the wiring you received may not match the diagram on this page.

Most of our diagrams don't depict ground wires. Make sure all metal is properly grounded to ensure correct operation.
