All About Dogear Pickups

If you’re ever looking at purchasing one of our P90‘s, chances are, you might have a Dogear Style P90. Dogear P90 Pickups have a few different qualities to them that might be confusing for some. We thought we’d take some time and shed some light on these qualities, so you can order with confidence.

SHORT, OR STANDARD?

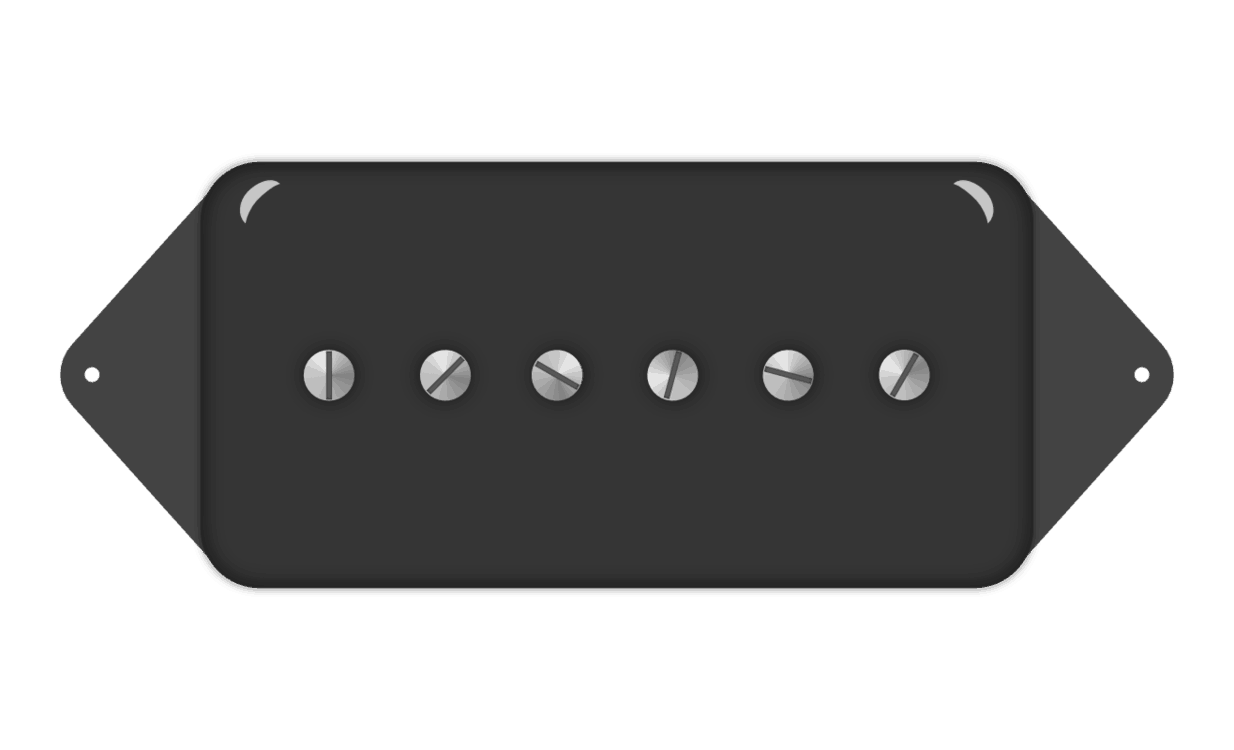

One subject of confusion is whether to go with a “Short” Dogear or not. This is pretty easy to identify – observe your guitar! To identify a Standard Dogear P90, look at it’s covers. Standard Dogear Pickups are parallel with the top of the guitar and have equal height on either side. See below for an example of a Standard Dogear.

Short Dogear Pickups have a slanted look to them. One side of the Dogear slants towards the headstock, tilting the pickup forward. Most of the time, you will notice a Standard Dogear Bridge, and a Short Dogear Neck. If you have this setup, you have a “Short Set”.

If you have a Short Set, you might need “Dogear Shims“. Shims are spacers to raise the pickup closer to the strings. Their purpose is to help you get the pickup to it’s ideal height. Read on to learn how to measure your shim height!
